Phenolic Paper Laminated Sheet in Stock

Basic Info

Model No.:  PR-PHE-1

Product Description

Model NO.: PR-PHE-1 Type: Solid Material: Plastic Maximum Voltage: 10KV~20KV Certification: SGS Brand: Prior Size: 1020*2020mm Fob Port: Shenzhen Small Order: Accepted Trademark: PRIOR Origin: China Application: Insulators, Electrical Winding Insulation, Electrical Base, Shell, Switch Baseplate Chemistry: Inorganic Insulation Thermal Rating: E 120 Classification: Inorganic Insulation Material Color: Brown Thickness: 0.5-100mm Density: 1.45g/cm3 Sample Availability: Yes Lead Time: 7-10 Working Days Specification: SGS, RoHS HS Code: 3920940000 Phenolic paper laminated sheet in stock

Description

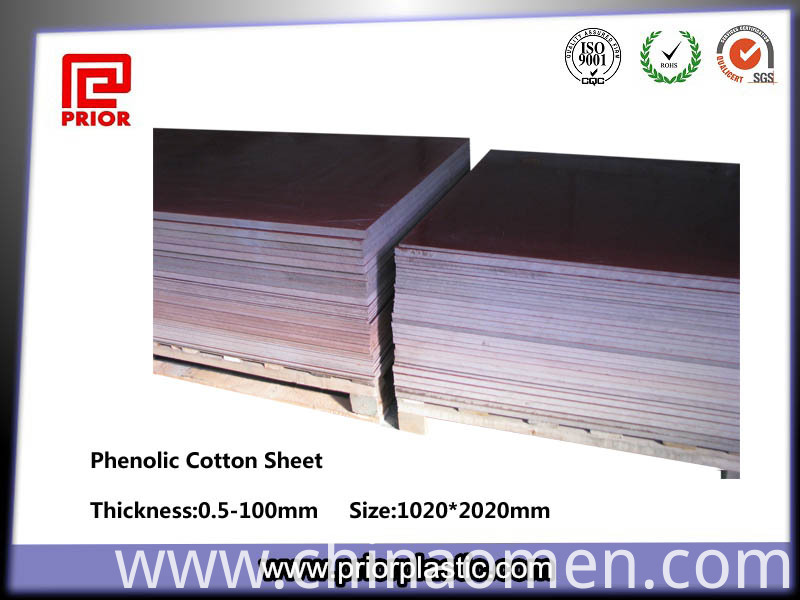

Phenolic cotton cloth laminated sheet or rod are made of cotton cloth impregnated phenolic resin by processing under heat and pressure. It can be used in the transformer oil.

Characteristics
-Good wear resistance
-Good heat resistance
-Good electrical properties
-Noise reduction
-Long life span

Applications
The products are widely used in transformers, electric motors, cabinets, control boxes, electric switches, household appliances, railway, automobile, computer and medical appliance,etc.

Phenolic Paper Laminated Sheet in Stock
Technical Data Sheet
Technical Data Method of Verification Unit 3025
I.Physical Properties
Density ISO 1183 g/cm3 1.5-1.6
Water absorption 24hrs ISO 62 % ≤2.2
III.Thermal Properties
Heat stability(≤20mm) ISO 75-2 ºC ≥110
Heat stability(≥20mm) ISO 75-2 ºC 90
Max. service temperature -Short term ISO 75-2 ºC 300
Max. service temperature - Long term ISO 75-2 ºC 140
Flammability UL 94 Class HB
II.Mechanical Properties
Tensile strength at yield ISO 527-2 MPa ≥83
Tensile strength at break ISO 527-2 Mpa /
Hardness - Shore D DIN 53505    115-118
Impact strength ISO 179 kJ/m2  ≥43
Bending Strength ISO 527-2 Mpa ≥105
Flexural strength ISO 179 Mpa ≥120
Adhesive Strength ISO 179 N 5500
Compression strength-vertical ISO 179 Mpa ≥245
Compression strength-parallel ISO 179 Mpa ≥147
IV.Electrical Properties
Volume resistively IEC 60093 Ohm (Ω) * cm 10^7~10^8
Surface resisively IEC 60093 Ohm (Ω) /
Electric strength- LW VDE 0303 KV ≥10
Breakdown Voltage-CW VDE 0303 mV/m ≥0.82
Relative dielectric coefficient VDE 0303 / /
Dielectric Loss Factor at 1MHz VDE 0303 / /
NOTE: 1 g/cm3 = 1,000 kg/m3, 1 Mpa = 1 N/mm2, 1kV/mm = 1 MV/m
Statement:
Property data contained herein are typical values of resin for your reference and comparison purposes only. PRIOR will not provide any legally binding guarantee of certain properties, or any suitability.

Phenolic Paper Laminated Sheet in Stock
